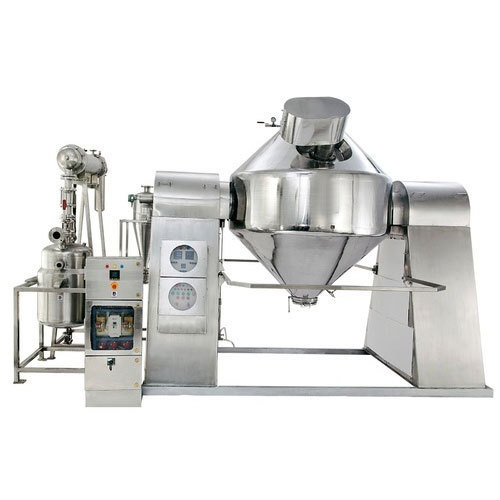

Rotary cone Vacuum Dryer
Rotocone Vacuum Dryer RCVD
Operational Mechanism
In operation, the rotocone vacuum dryer dries product through creation of a vacuum. This decreases the pressure around the product to below the vapor pressure of water and creates the effect of reducing product water boiling point which then evaporates and there is enhanced rate of drying of the product. The process is also done under low relative humidity for better drying.
Equipment Features
To enhance the rate of drying, the rotocone vacuum dryer manufacturers may add lump breakers onto the cone for breaking the large clumps of material inside the rotating cone, increasing the drying surface area and achieves more efficient drying.
Double Cone Vacuum Dryer
The double cone vacuum dryer also utilizes the vacuum drying technology with greater drying efficiency. Wet product goes through an indirect heating process and agitation with tumbling action, all while inside a vacuum to achieve rapid drying. In this process, recovery of solvent is also possible through condensation processes.
With constant innovation, the RVCD manufacturer has been able to deliver highly precise models that achieve thorough drying of product, uniformity of products, reduced drying time and an easy to clean and maintain machine. The roto cone vacuum dryer is mainly used in chemicals processing and pharmaceutical industries where air contamination can easily occur with other types of dryers.
Capacity
Standard models range from 50, 100, 325, 500, 750, 1000, 1500, 2000, 3000, 5000 Ltrs Rotocone Vacuum Dryer , Rotocone Vacuum Dryer Manufacturer, RCVD manufacturer, Double Cone Vacuum Dryer Manufacturer.
Our machines are simple and effective method of drying wet cakes and sometimes slurries.
Specially Uniform material shuffling over the heated contact surface of the rotocone dryers
Drying time Reduces and eliminates need of re -drying of lumps.
N2 pulse jet dust filter provided for better operational efficiency of products.
discharge valve with Quick openable for direct packing of dry products into bags or drums.
Best Suitable to process crystalline or amorphous powders which prone for lumps.
cGMP construction with safety railing to avoid personnel injury.
Available from 100 Ltrs. to 5000 Ltrs. gross capacity.
Due to vacuum and agitation, it is possible to dry heat sensitive materials.
No degradation due to over exposure, more temperature and time.
TECHNICAL SPECIFICATION OF ROTOCONE VACUUM DRYER - RCVD Model No.:
| Total Volume in Ltrs | 15 | 100 | 200 | 300 | 500 | 750 | 1000 | 1500 | 2000 | 5000 |
| Working Volume in Ltrs | 9 | 60 | 120 | 180 | 300 | 450 | 600 | 900 | 1200 | 3000 |
| Capacity in Kg (max) | 5 | 30 | 75 | 100 | 175 | 250 | 350 | 500 | 700 | 1700 |
| RPM | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Heat transfer area in m2 | 0.5 | 3.5 | 4.2 | 5 | 6 | 7 | 8 | 9.5 | 11 | 20 |
| Cyclone Separator in Ltrs | 1 | 5 | 7 | 10 | 15 | 20 | 25 | 30 | 40 | 75 |
| Condenser in m2 | 0.1 | 0.5 | 0.75 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 6 |
| Receiver in Ltrs | 3 | 20 | 40 | 50 | 75 | 100 | 150 | 200 | 250 | 500 |
| Charging Ht in mm | 700 | 1350 | 1500 | 1650 | 1800 | 2000 | 2300 | 2500 | 2650 | 3500 |
| Discharging Ht in mm | 300 | 600 | 650 | 650 | 700 | 650 | 750 | 750 | 750 | 750 |
| Charging Size in mm | ? 150 | ? 250 | ?300 | ?300 | ?350 | ?400 | ?400 | ?450 | ?500 | ?600 |
| Discharging Size in mm | ?75 | ?125 | ?150 | ?150 | ?175 | ?200 | ?200 | ?225 | ?250 | ?300 |
| Gear Box | 2? | 2.5? | 3? | 3? | 4? | 4? | 5? | 6? | 6? | 10? |
| Main drive motor | 0.5HP | 2HP | 3HP | 3HP | 5HP | 5HP | 7.5HP | 10HP | 10 | 20 |
| Lump Breaker motor | -- | -- | -- | 0.25 HP | 0.25 | 0.5 HP | 0.5 HP | 0.5 HP | 1 HP | 2 HP |
Design Temp: 200"C, Testing: Vacuum side Full vacuum upto 750 mm of Hg & Steam/Hot water jacket side 5 Kgs/cm2 pressure test.
